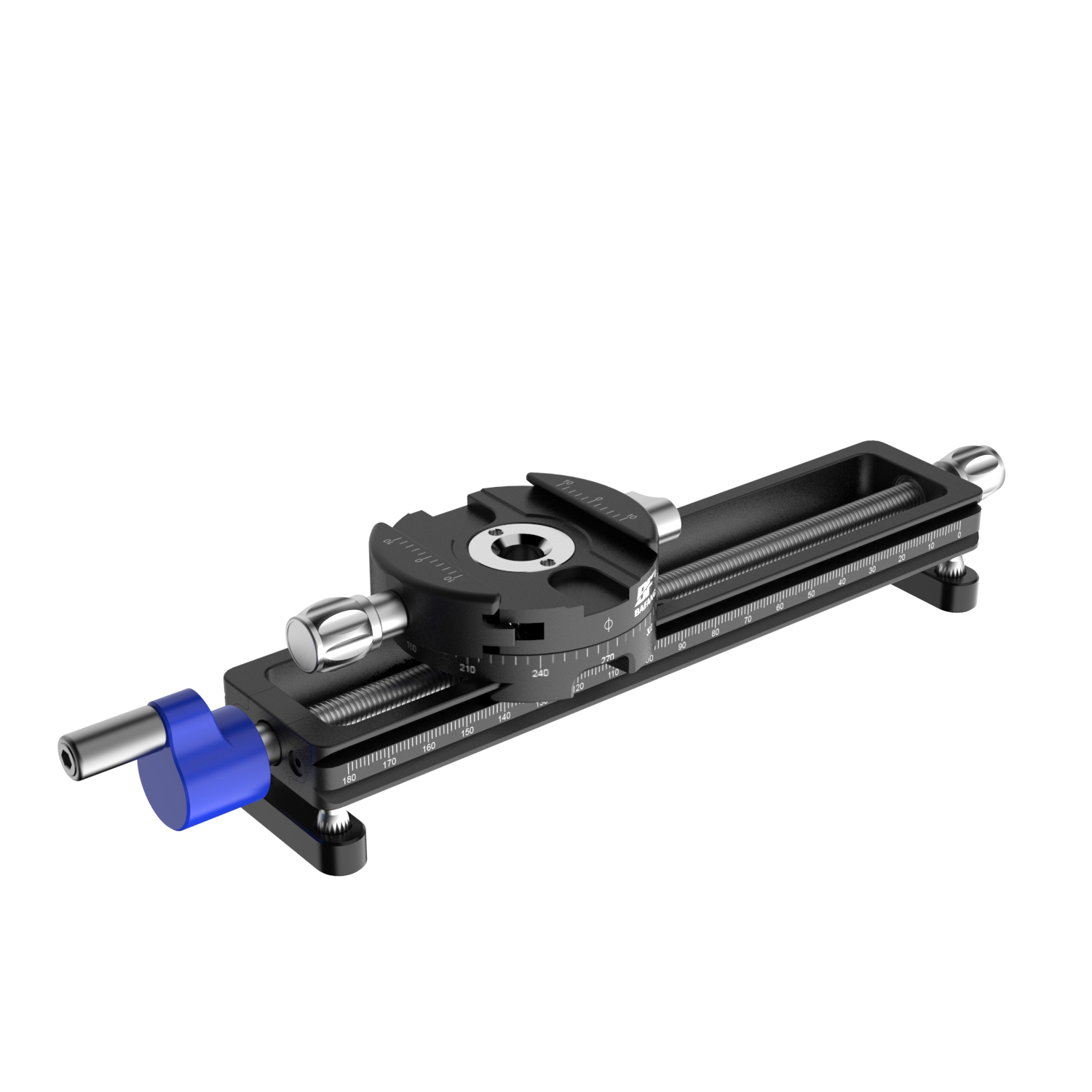

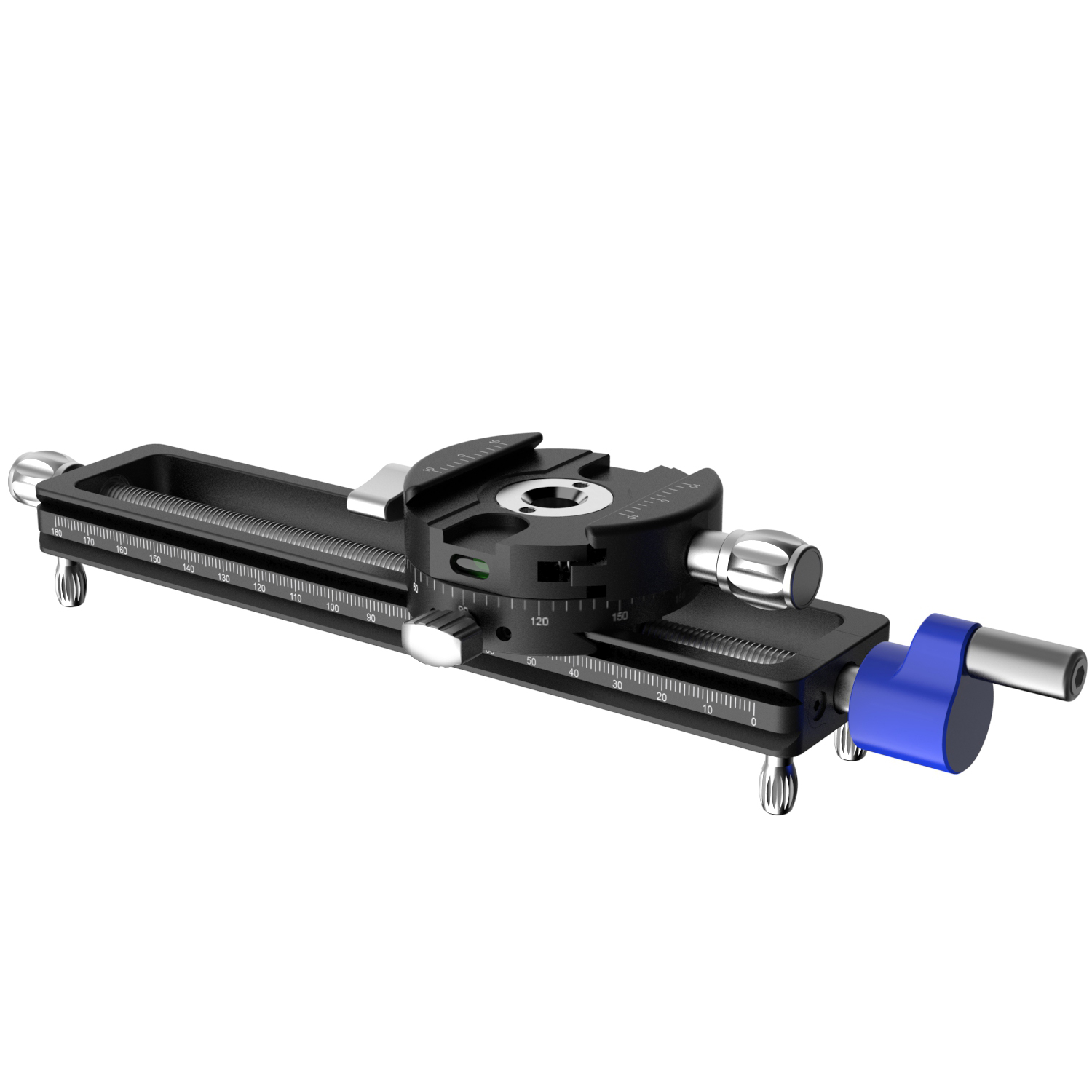

Macro guide rail

1
2
3
4
5
6

BFW-150B Black

61.54 $

1. This product is a precision equipment, which can not be strongly impacted,
bumped or dropped, otherwise it may cause abnormal function;

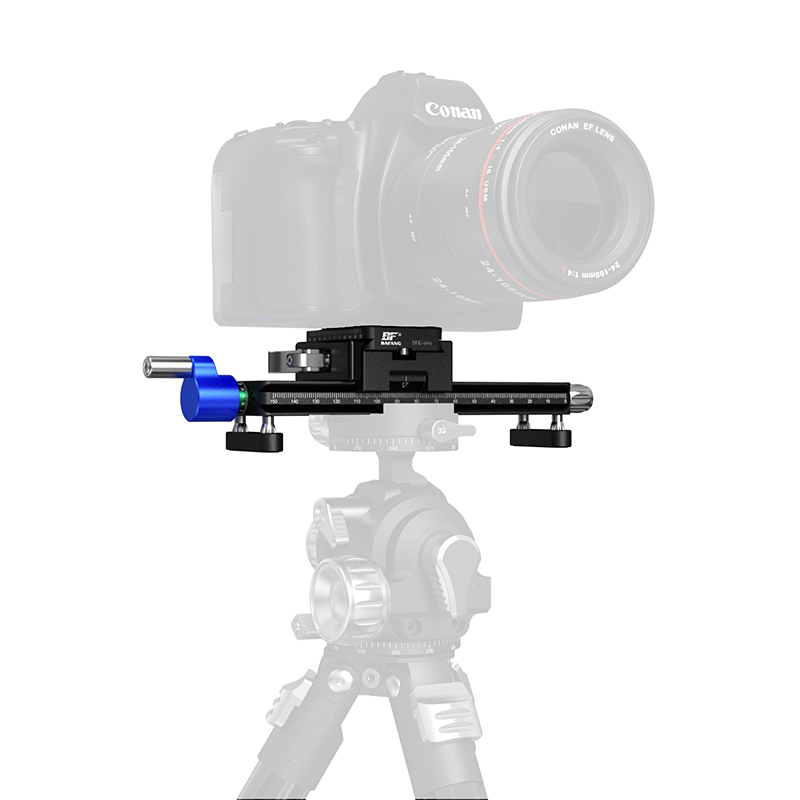

2. When moving the tripod or macro rail, be sure to hold the camera with your
hand to ensure safe use;
3. This product is Non- waterproof ,avoid immersion in water to Use. If it is wet
by rain, it will not affect the use after being wiped dry;
4. This product only can be used within the temperature range of -40℃ to 60 ℃;
5. The adjustment distance shall not exceed the maximum distance of the rail to
prevent damage to the micro guide rail;
6. When the square Slint is locked on the rail, do not rotate the micro
adjustment knob to prevent damage to the micro guide rail;
7. The safety foot nails must be tightened during use to prevent the guide rail
from slipping and damaging the camera
8.All product drawing& function-instruction is used for reference only, the finally
correct datails please see in real products.
ESSENTIAL DETAILS

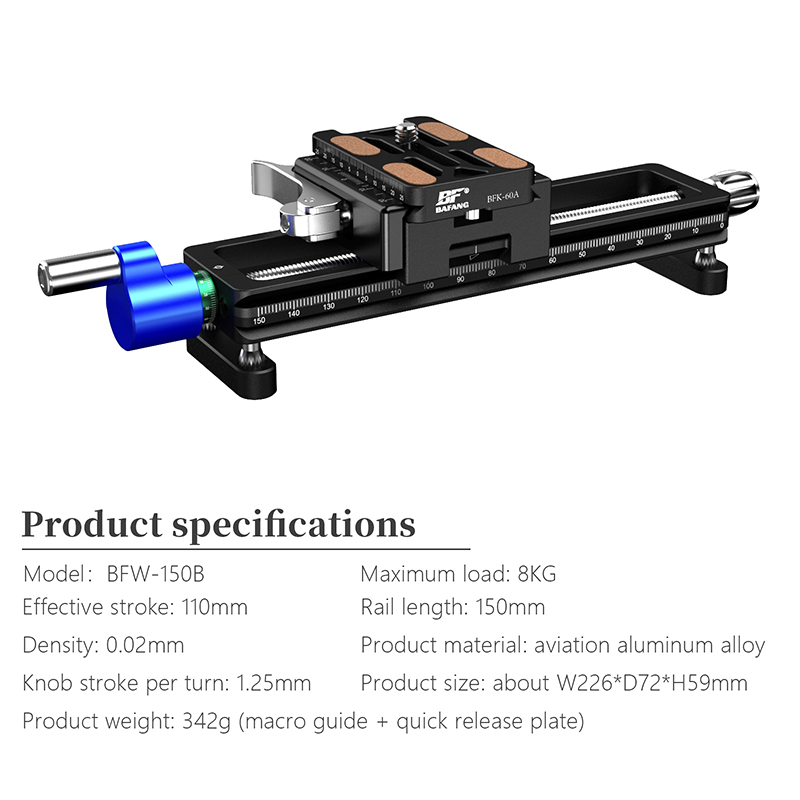

Product Parameters

Model: BFW-150B

Maximum load: 8KG

Effective Distance: 110mm

Length of Rail: 150mm

Travel of each circle of Adjusting Knob: 1.25 mm

Precision: 0.02mm

Product Size: About W226*D72*H59 mm

Product Material: Aviation aluminum alloy

Product Weight: 342g (Macro Focusing Rail + Quick Release Plate)


Package List

Macro Rail*1

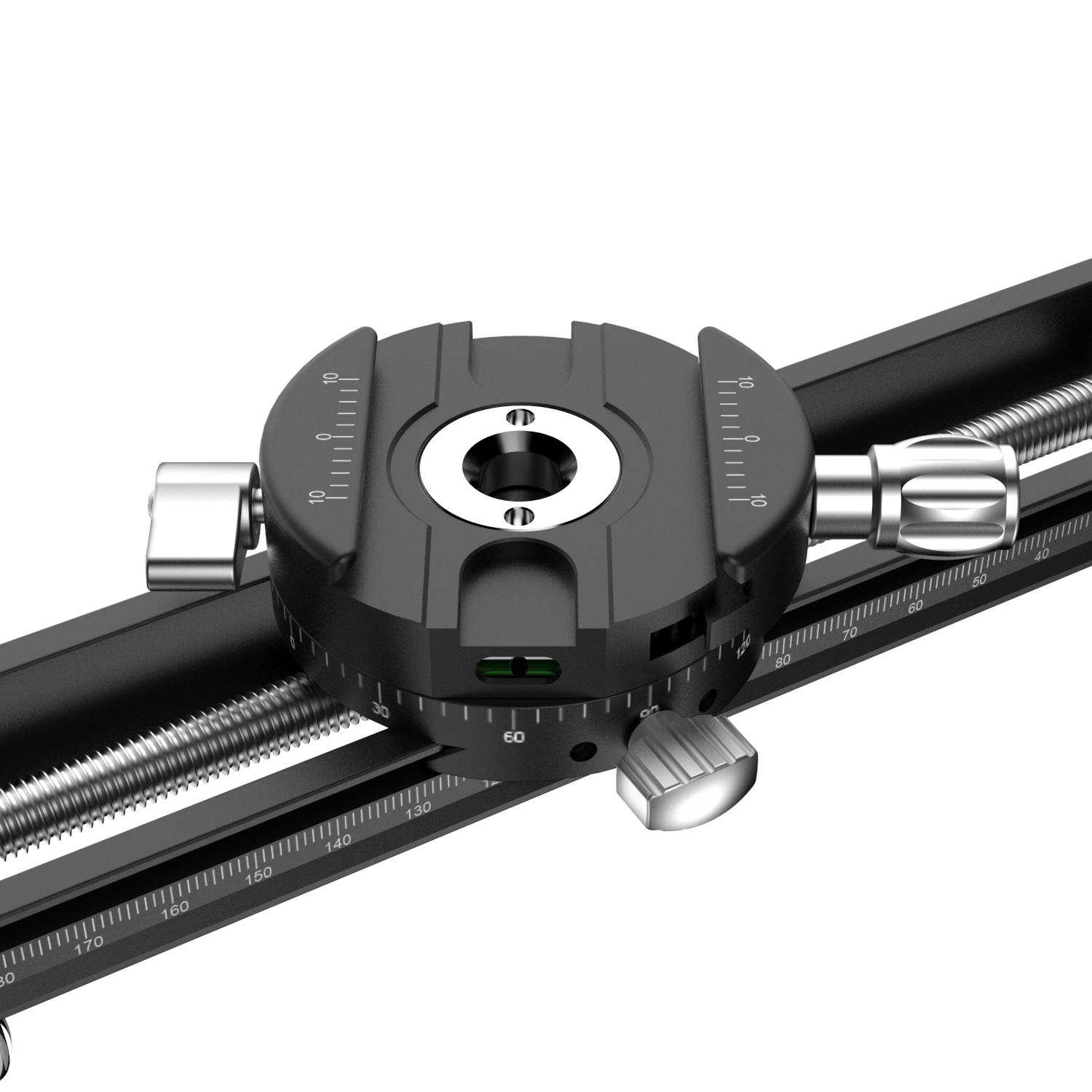

Quick Release Plate*1 (Preinstall on Rail)

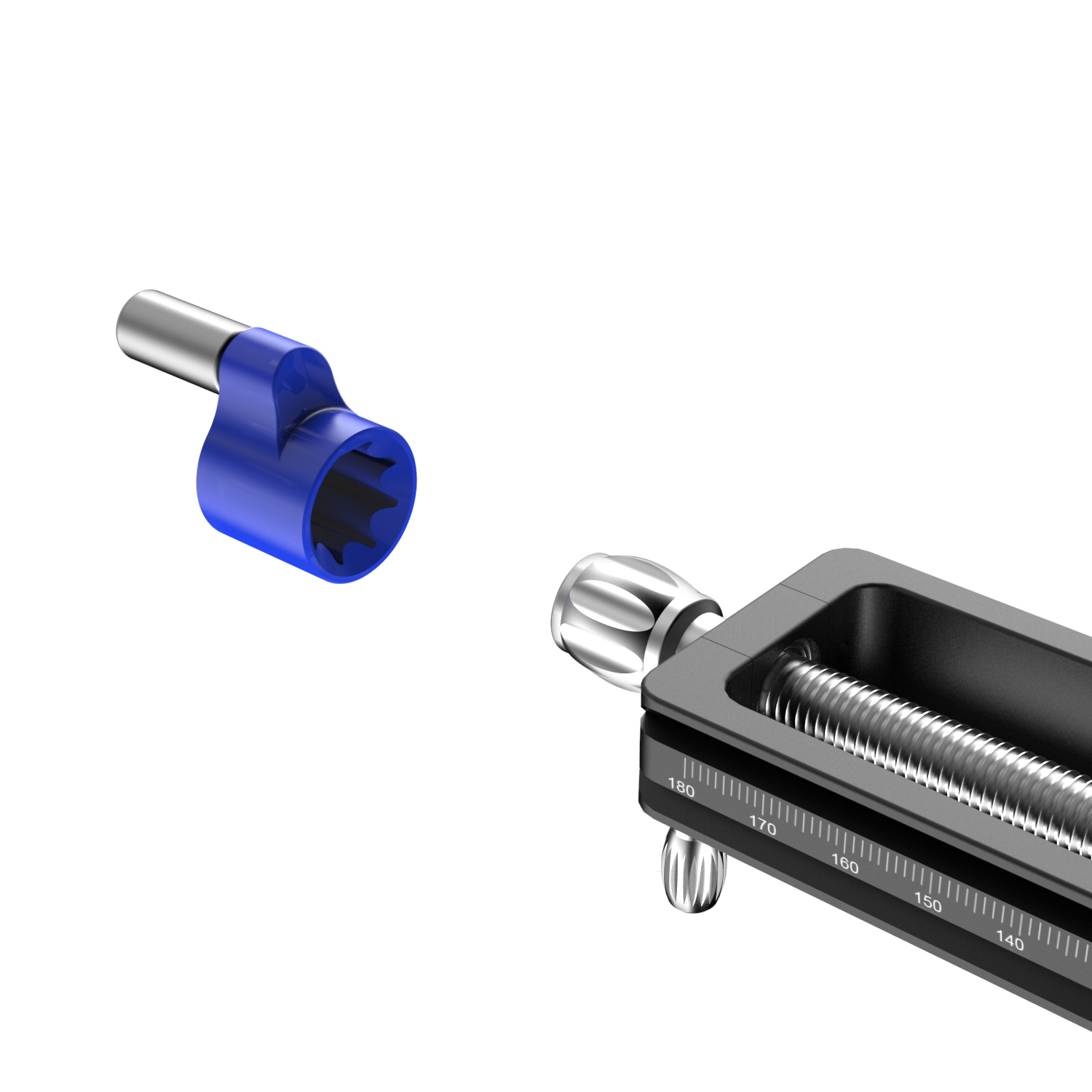

Quick Sliding Crank*1

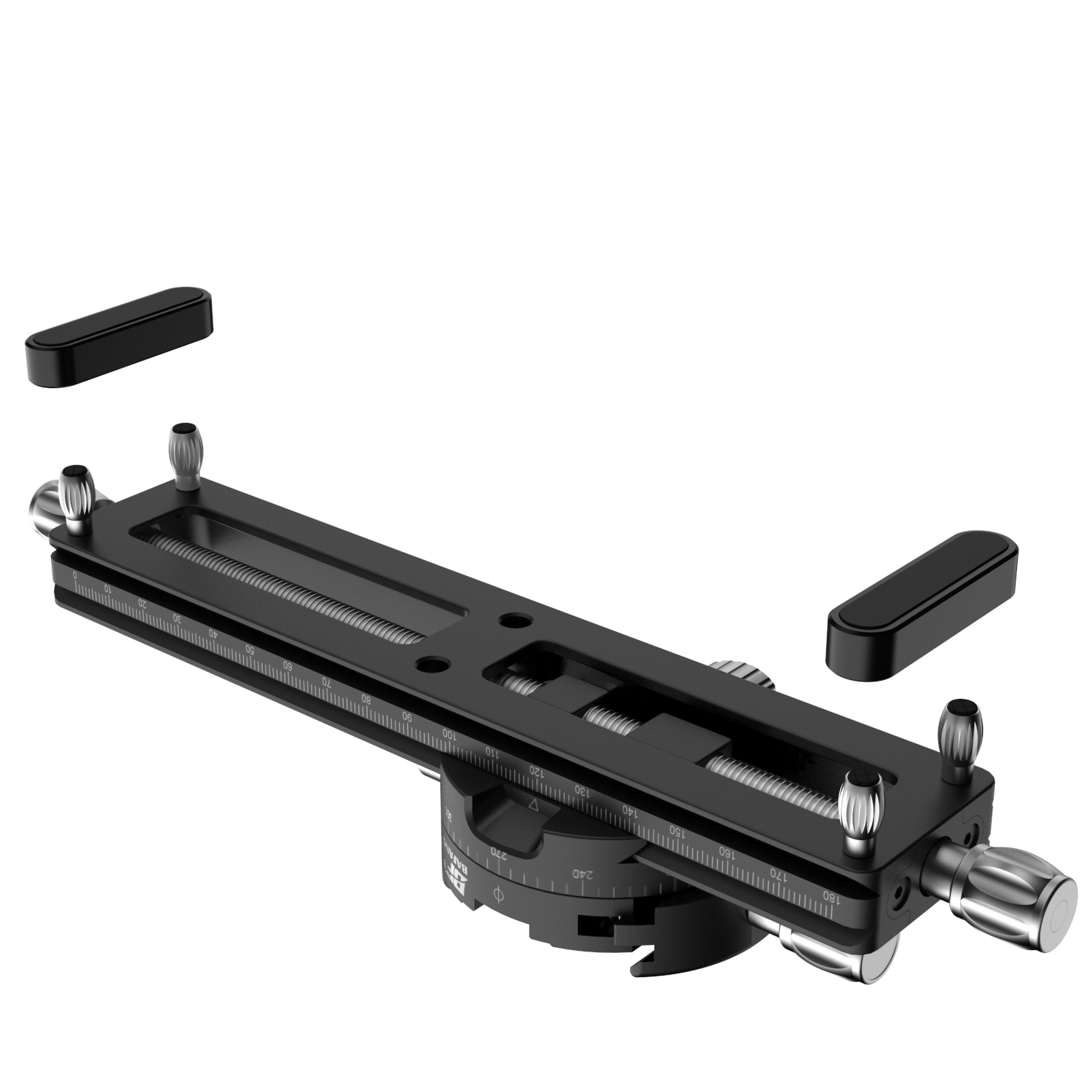

Non-slip Pad*2

M4 Hexagonal Wrench*1

M2.5 Hexagonal Wrench*1

M1.5 Hexagonal Wrench*1

User Manual*1
